Oil heating drying kiln

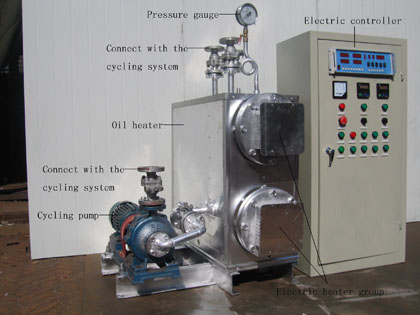

We designed the new type of heat conducting heater of oil and electricity.The study is particularly convenient for small and medium wood processing enterprise. There is no need to use boiler,heat conduction oil replaced the traditional steam or high temperature water.The oil can be heated soon, the heat can be kept for a long time, and will deliver the heat to the interior of the surrounding space, cut off the power still be kept for a long time. Because of the high temperature of heating oil and high thermal conductivity, the capacity of the heater is smaller than the boiler. Heater can be installed directly in the control room of the drying kiln,no need to set up a separate boiler room. Heater can be shipped to the final destination, and installed together with the kiln, it can make save time and reduce the installation cost. Users should consider of local power and electricity costs

The major physical-chemical property and quality index of heat conduction oil

No.
Index

300

320

330

340

Способы определения

Term

Display

Светло-желтый цвет

Светло-желтый цвет

Светло-желтый цвет

Светло-желтый цвет

Визуальное наблюдение

Acid-test ratio (mgKOH/g)

0.02

0.02

0.02

0.02

GB-264

Fire point℃

190

200

205

210

GB-267

Freezing point℃

-20

-20

-20

-20

GB-510

Distillation-stage(2%)℃

320

340

350

360

ZB330006-88

Kinematic viscosity(50%)mm2/s

15-20

16-22

20-25

22-27

GB-265

Carbon left

0.02

0.02

0.02

0.02

GB-268

ρ(20%)g/cm2

0.83-0.85

0.85-0.87

0.86-0.88

0.87-0.89

GB-1884

Copper corrosion degree

Up to standard

Up to standard

Up to standard

Up to standard

GB-5096

Expansion ratio
(100℃-200℃)x10-4℃

6.64-7.12

6.38-7.04

6.34-7.00

6.30-6.95

Specific heat
KJ/Kg ℃

100℃

2.260

2.294

2.357

2.386

200℃

2.638

2.684

2.577

2.784

Heat conductivity
KJ/m hr.℃

100℃

0.461

0.473

0.477

0.481

200℃

0.435

0.444

0.448

0.452

229.135

229.456

230.324

230.346

The use of high temperature ℃

300

320

330

340
